Single/dual-channel MLSS (mixed-liquor suspended solids) monitor.
The Potence Controls PCMLSS system monitors mixed-liquor suspended solids (MLSS) up to 50,000 mg/L in aeration basins, pairing a wiper-cleaned optical sensor with the PC210D digital controller.
| Sensor Range | 0-50,000 mg/L (MLSS) |
|---|---|
| Sensor MOC | SUS316L, sapphire glass, fluorocarbon rubber, EPDM, PVC cable |
| Sensor Comm | Modbus RTU |
| Cleaning System | Wiper cleaning |
| Sensor Temp | 0-50°C |
| Sensor Protection | IP68 (max 2 m) |
| Sensor Cable | 9 m |
| Sensor Size | Φ48 x 133 mm |
| Sensor Weight | ~1.1 kg |

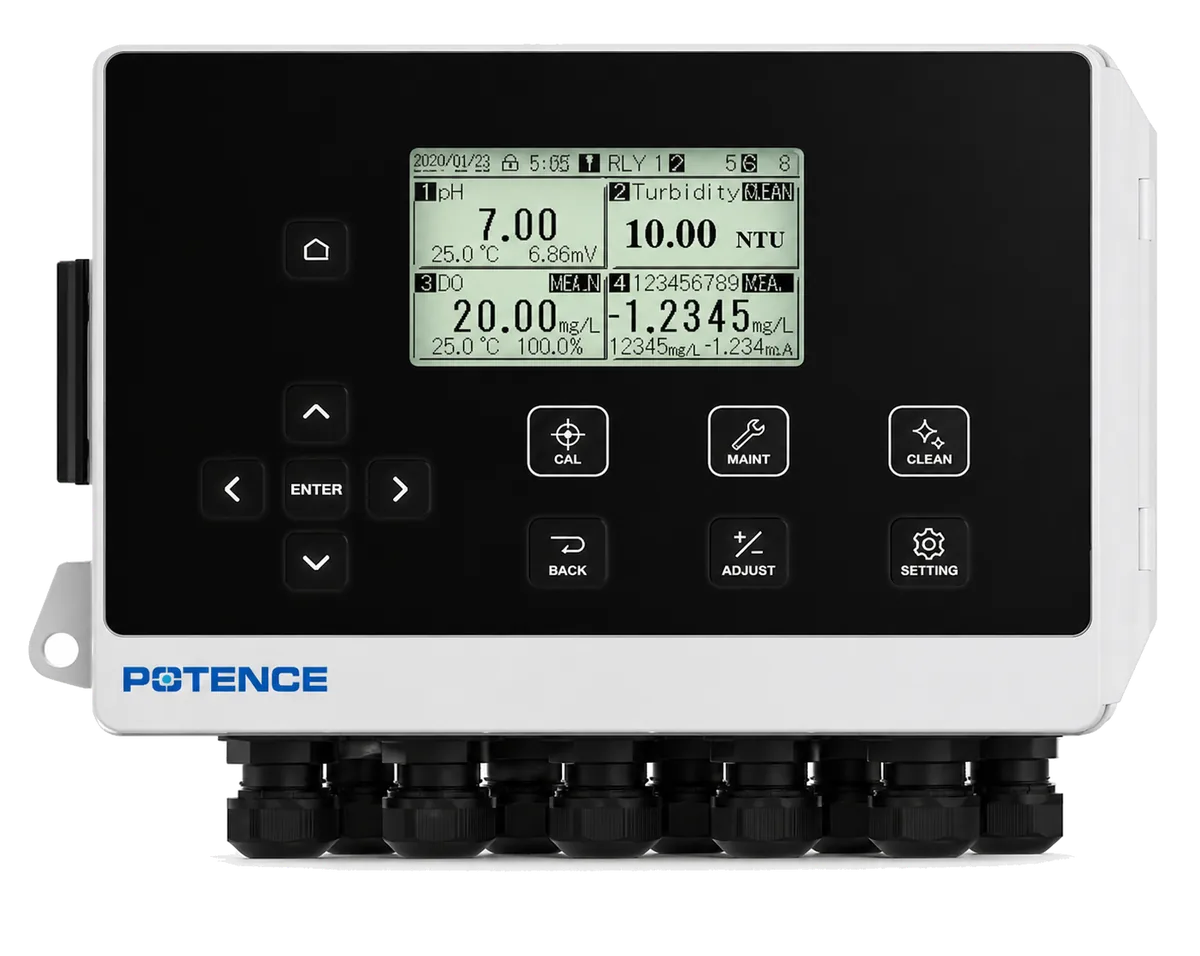

| Controller | PC210D digital |
| Power | 100-240 VAC ±10%, 50/60 Hz |
| Retransmission Output | 4-20 mA |
| Relay | Self-checking output (potential-free) + alarm |
| Controller Protection | Water-jet proof |
| Multi-sensor | Multiple sensors connectable |
Specifications are indicative and subject to configuration. Contact us for the certified datasheet for your model.
Share your application details and our engineering team will respond — usually within 24 hours — with pricing and the right configuration.
