Online colorimetric total-phosphorus analyzer (digestion + molybdate).

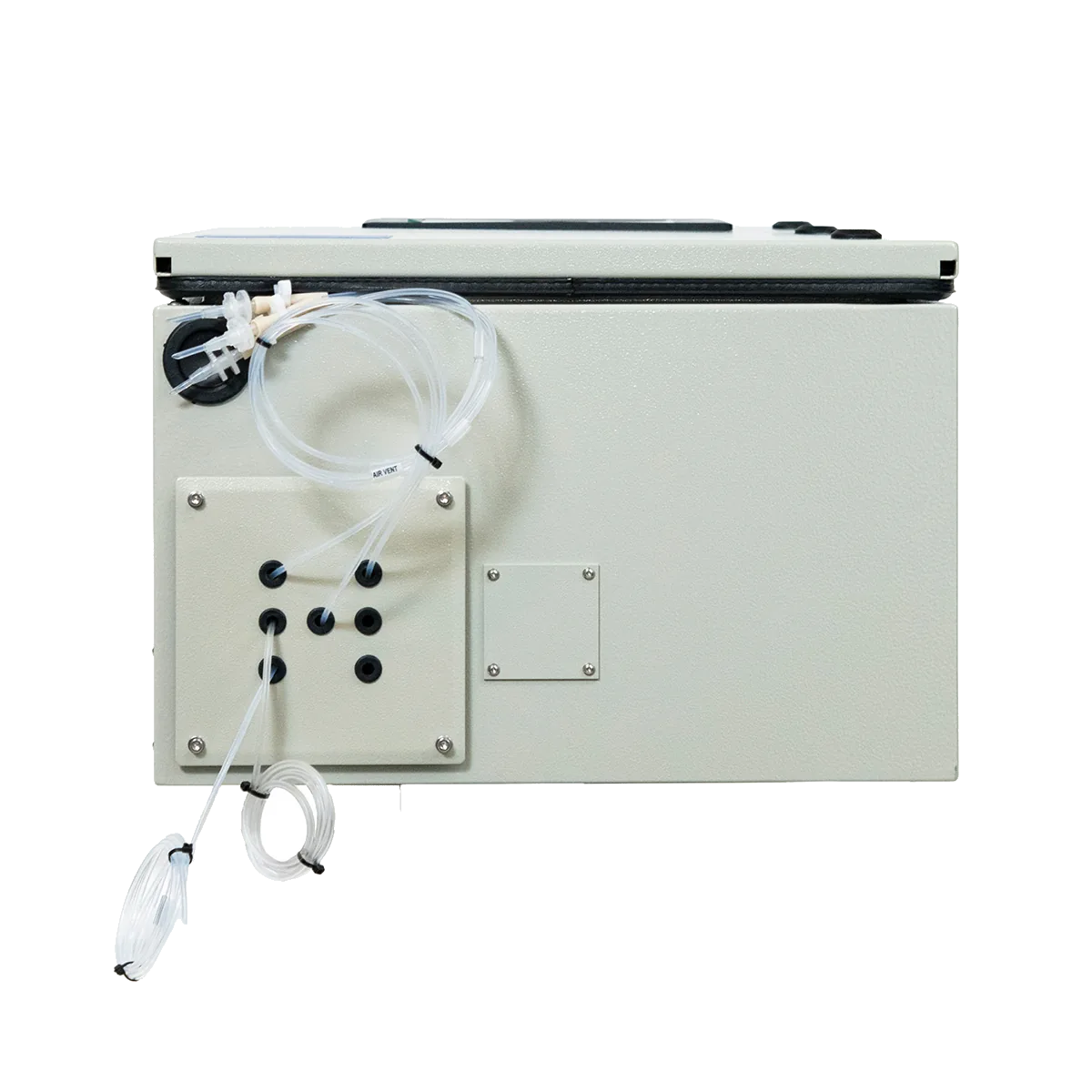

The SYSTEA MICROMAC Phosphorous (Total) analyzer measures total phosphorus online using acidic high-temperature & UV digestion followed by the molybdate/ascorbic acid reaction.
| Type | Online total phosphorus analyzer (colorimetric) |
|---|---|
| Measuring Principle | Acidic high-T & UV digestion + molybdate/ascorbic acid |
| Colorimeter | Dual-beam, silicon detector |
| Measurement Type | Cyclic, programmable interval |
| Measuring Range | 0-1/3/5/10/20/50/100/200 ppm (others on request) |
| Detection Limit | ~2% of full scale |
| Output Signal | 4-20 mA |
| Protection | IP55 |
| Hardware | PC104, keyboard + graphics display, RS232 option |
| Power | 12 VDC external PSU |
| Weight | 33 kg (without reagents) |
Specifications are indicative and subject to configuration. Contact us for the certified datasheet for your model.
Share your application details and our engineering team will respond — usually within 24 hours — with pricing and the right configuration.
