Home›Products›Nitrate›Nitrate Analyzer — Micromac C
Nitrate Analyzer — Micromac C — Water Analyzers
Water Analyzers · Nitrate

Nitrate Analyzer — Micromac C

Model / SKU: MICROMAC Nitrate (SYSTEA)

Online colorimetric nitrate analyzer.

  • Micromac C
  • Colorimetric, UV photoreduction to NO2, colorimetric reaction with NED+SAA
  • 0 – 5 / 10 / 20 / 100 / 200 / 1000 ppm N-NO3, other ranges available on request
Request a Quote Download Datasheet
Overview
Specifications
Features
Applications
Downloads

Product Overview

The SYSTEA MICROMAC Nitrate is a microprocessor-controlled online colorimetric analyzer for nitrate, using UV photoreduction to nitrite followed by the NED+SAA colorimetric reaction.

Technical Specifications

TypeOnline nitrate analyzer (colorimetric)
Measuring PrincipleUV photoreduction to NO2 + NED+SAA colorimetric
ColorimeterDual-beam, silicon detector
Measurement TypeCyclic, programmable interval
MEASURING TIME: 13-15 minutes depending on the range Measuring Range0-5/10/20/100/200/1000 ppm N-NO3 (others on request)
Detection Limit~2% of full scale
Output Signal4-20 mA
ProtectionIP55
HardwarePC104, keyboard + graphics display, RS232 option
Power12 VDC external PSU
Weight33 kg (without reagents)

Specifications are indicative and subject to configuration. Contact us for the certified datasheet for your model.

Key Features

  • UV photoreduction + NED/SAA colorimetric
  • Dual-beam colorimeter
  • Cyclic online operation
  • Wide range (0-1000 ppm N-NO3)
  • Robust IP55 industrial design Fully automatic operation Long autonomy
  • low maintenance, low operating cost Low reagents consumption
  • short preparation time
  • low disposable costs Easy operation
  • plug in analyzer, no special training is required Electronics and hydraulics completely separated Serial interface for local o remote PC connection (option)

Typical Applications

Drinking water nitrate monitoring

Wastewater treatment

Environmental water

Documentation

Product Datasheet (PDF)Specifications, dimensions & ordering codes
Download
Installation & User ManualMounting, wiring, calibration & maintenance
Request
Enquire

Request a Quote — Nitrate Analyzer — Micromac C

Share your application details and our engineering team will respond — usually within 24 hours — with pricing and the right configuration.

You May Also Need

Related Products

Nitrite Analyzer — Micromac C — Water Analyzers

Nitrite Analyzer — Micromac C

SYSTEA

Online colorimetric nitrite analyzer (NED/SAAN method).

  • Micromac C
  • Colorimetric, NED/SAAN method
  • …more
DetailsGet Quote

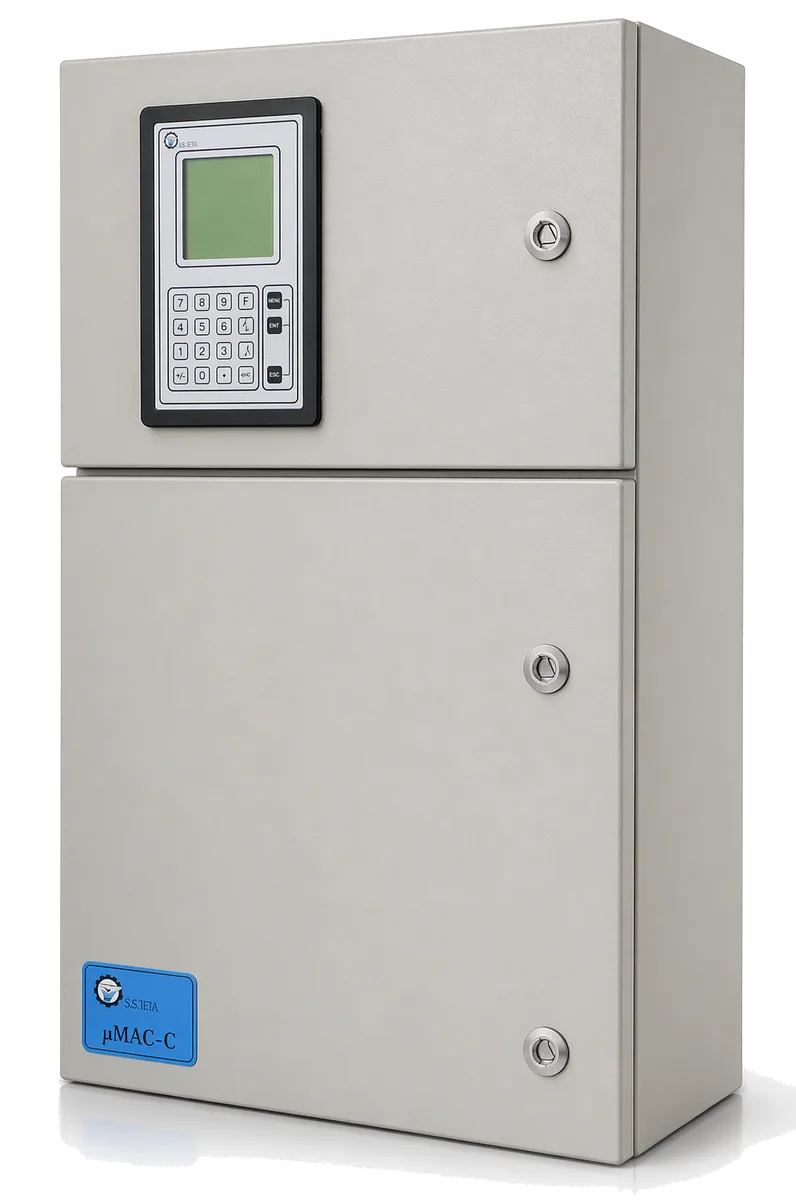

Ammonia Analyzer — NH3-N, NH4-N Colorimetric Type — Water Analyzers
