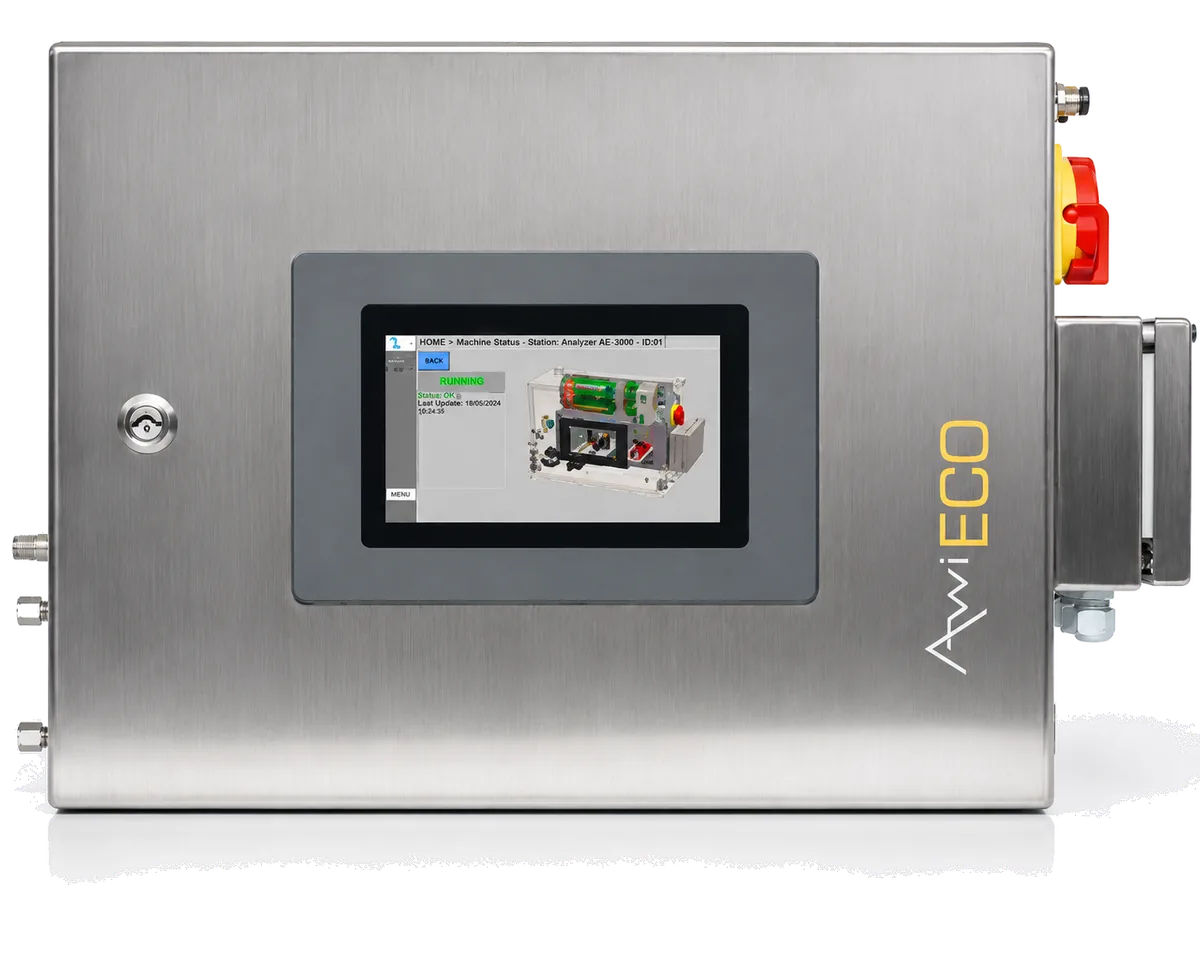

Compact entry-level biogas analysis system.
The Awite AwiECO is a compact gas analysis system measuring CH4, CO2, CO, O2 and H2S in biogas, with a 7-inch touch panel, AwiProtect power protection and NRTL TUV SUD (UL/CSA) certification — an economical solution for standard biogas monitoring.
| Type | Stationary biogas analysis system |
|---|---|
| CH4 / CO2 / CO | Infrared 2-beam, thermostated, 0-100 Vol.-%, ±0.5 % |
| O2 | Electrochemical, 0-25 Vol.-%, ±0.1 % |
| H2S | Electrochemical, ranges 0-20 / 0-200 / 0-1,500 / 0-3,000 / 0-5,000 ppm |
| Measurements | Up to 50/day |
| Display | 7" TFT touch panel, 800x480 |
| Data Storage | 4 GB microSD card, graphic/tabular history |
| Interfaces | 4-20 mA analogue outputs, Ethernet, RS232/RS485 (optional), Profibus DP (optional), USB (optional) |
| Suction Pipe | Up to 100 m |
| Gas Inlet Pressure | 20 mbar rel. (optional 400 mbar) |
| Ambient | 5-35 °C, 0-80 % RH |
| Protection | IP 54 |
| Power | 100-240 VAC, 50-60 Hz, <=30 W |
| Dimensions | 575x410x259 mm |
| Weight | <=18 kg |
| Certification | NRTL TUV SUD Mark (UL/CSA 61010-1) |
Specifications are indicative and subject to configuration. Contact us for the certified datasheet for your model.
