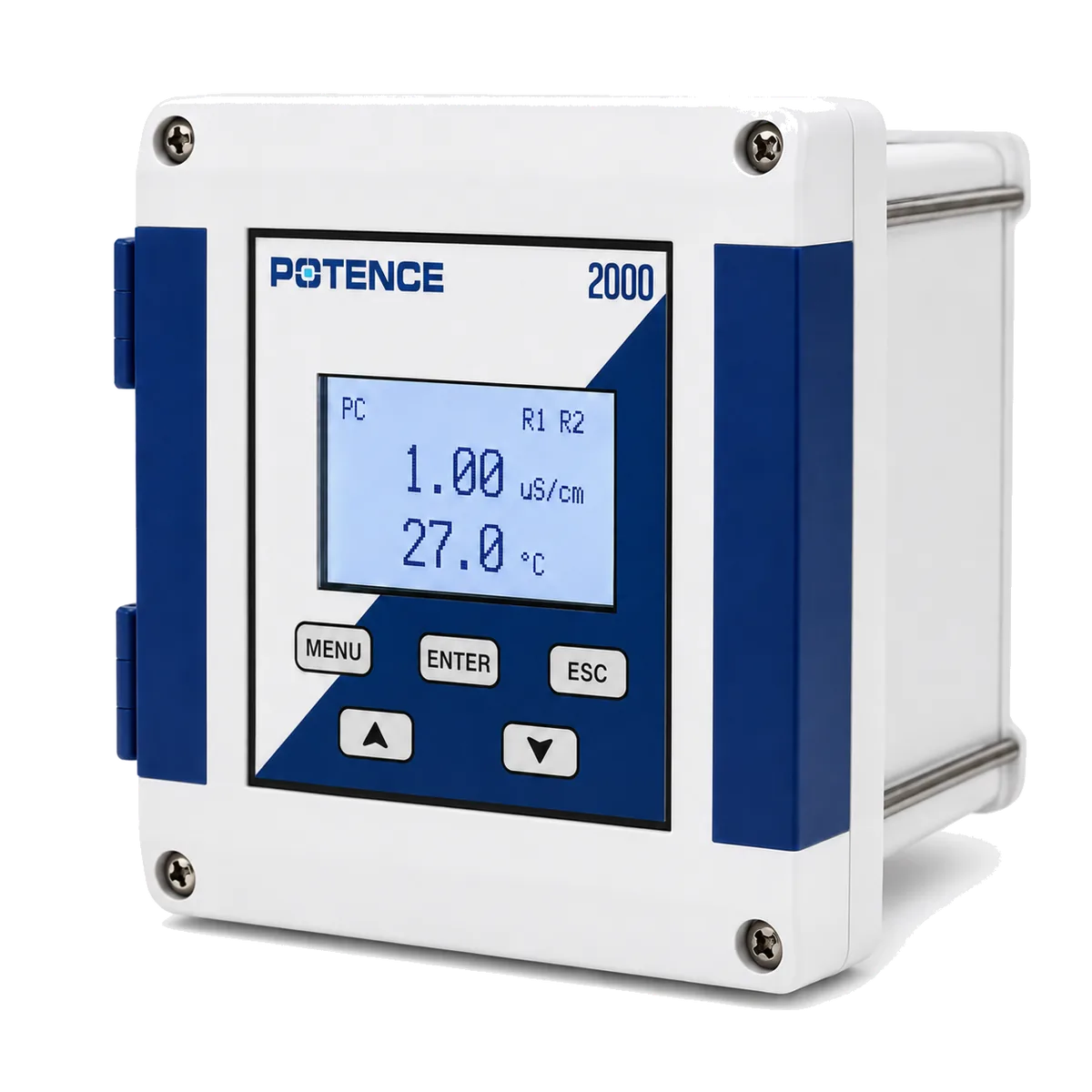

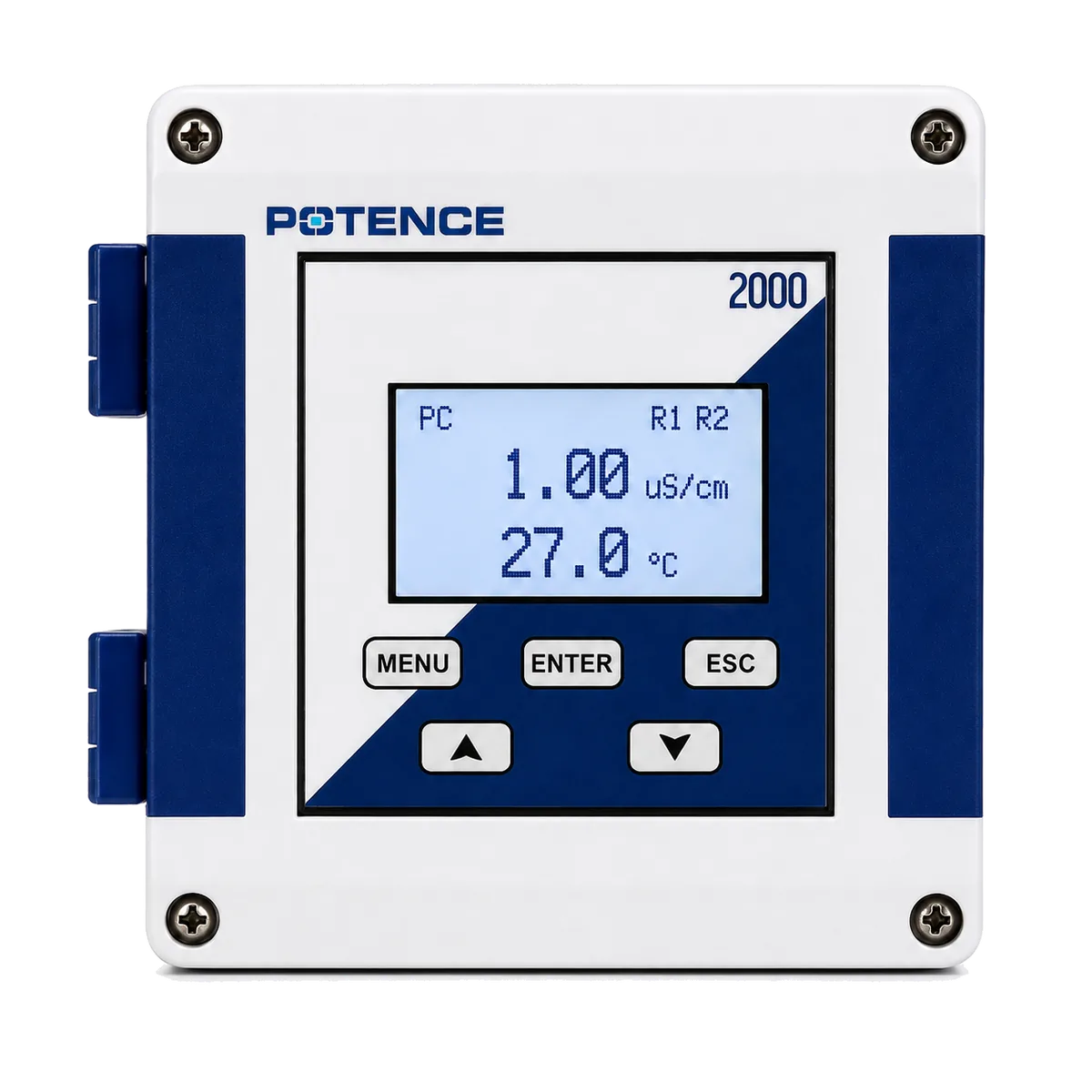

Single / Dual-channel controller for any of pH / ORP /Conductivity /TDS.
Potence Controls PC2000 Single/Dual-channel analyzer measures any two of pH/ORP, Conductivity or TDS, freely selectable via software, reducing the need for individual dedicated controllers.
| Measurement | pH/ORP or Conductivity or TDS (any two, software selectable) |
|---|---|
| Display | Graphic LCD backlit, 60 x 30 mm |
| Power | 90-270 VAC ±10%, 50/60 Hz |
| Operating Conditions | 0-65°C, RH 0-95% non-condensing |
| Storage | 0-75°C |
| Analog Output | 2 x 4-20 mA isolated, max 600 Ω |
| Output Function | Retransmission |
| Relays | 4 x SPDT, 10 A, 115/230 VAC |
| Relay Mode | Control and Alarm |
| Digital Communication | Modbus RS 485 |
| Memory | Non-volatile |
| Enclosure | Thermoset Plastic / SS |
| Enclosure Dimension | 144 x 144 x 132 mm |
| Conduit Entry | 1/2" NPT, 6 nos. |
| Enclosure Rating | IP65 |
| Mounting | Wall / Panel / Pipe |
| Weight | Approx. 1.60 kg |
| pH Range | 0-14 pH (±0.2% FS) |
| ORP Range | -2000 to 2000 mV (±10 mV) |
| Conductivity Range | 0-2000 µS/cm / 0-20 mS/cm |
| TDS Range | 0-1000 ppt |
| Temp Compensation | Automatic / Manual, Pt100/Pt1000 (-15 to 150°C) |
Specifications are indicative and subject to configuration. Contact us for the certified datasheet for your model.
Share your application details and our engineering team will respond — usually within 24 hours — with pricing and the right configuration.

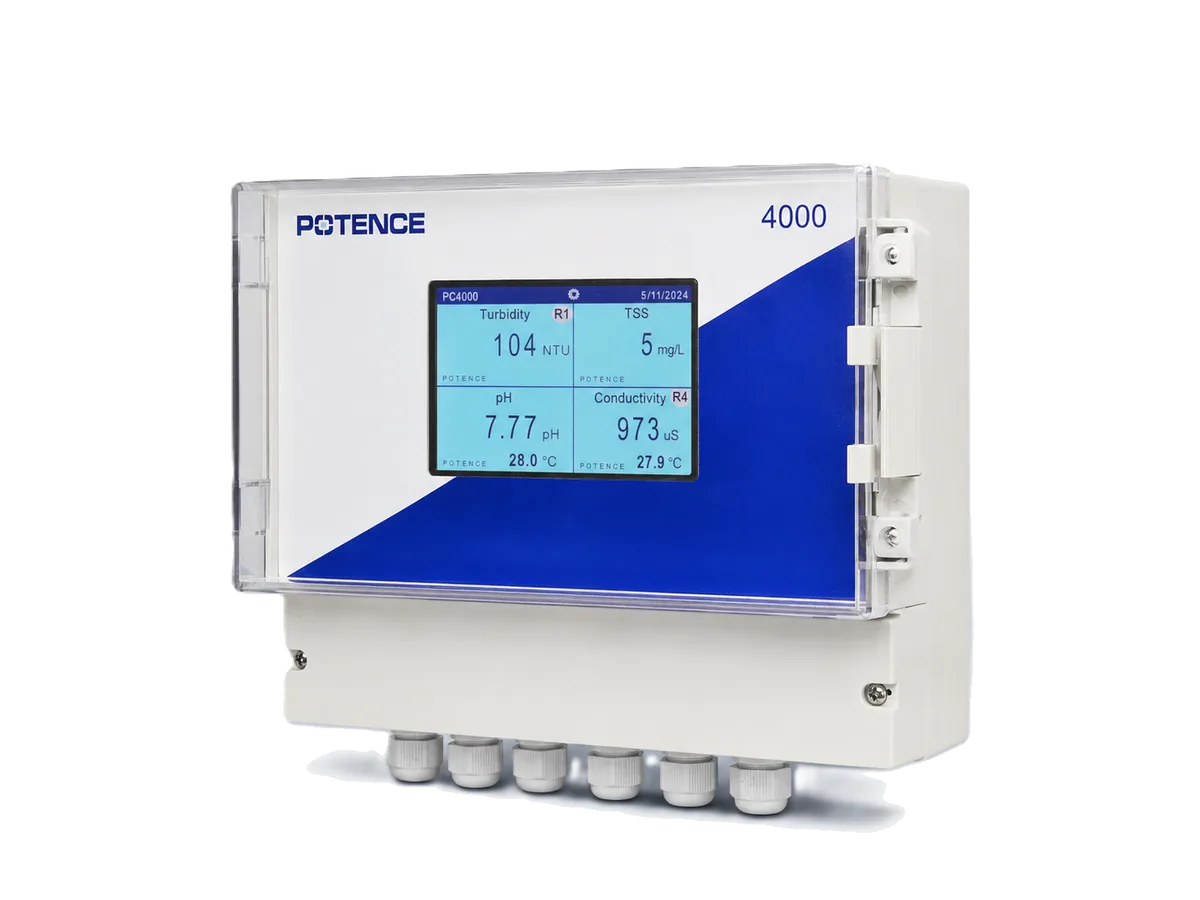

Monitors up to four water-quality parameters on a single instrument.

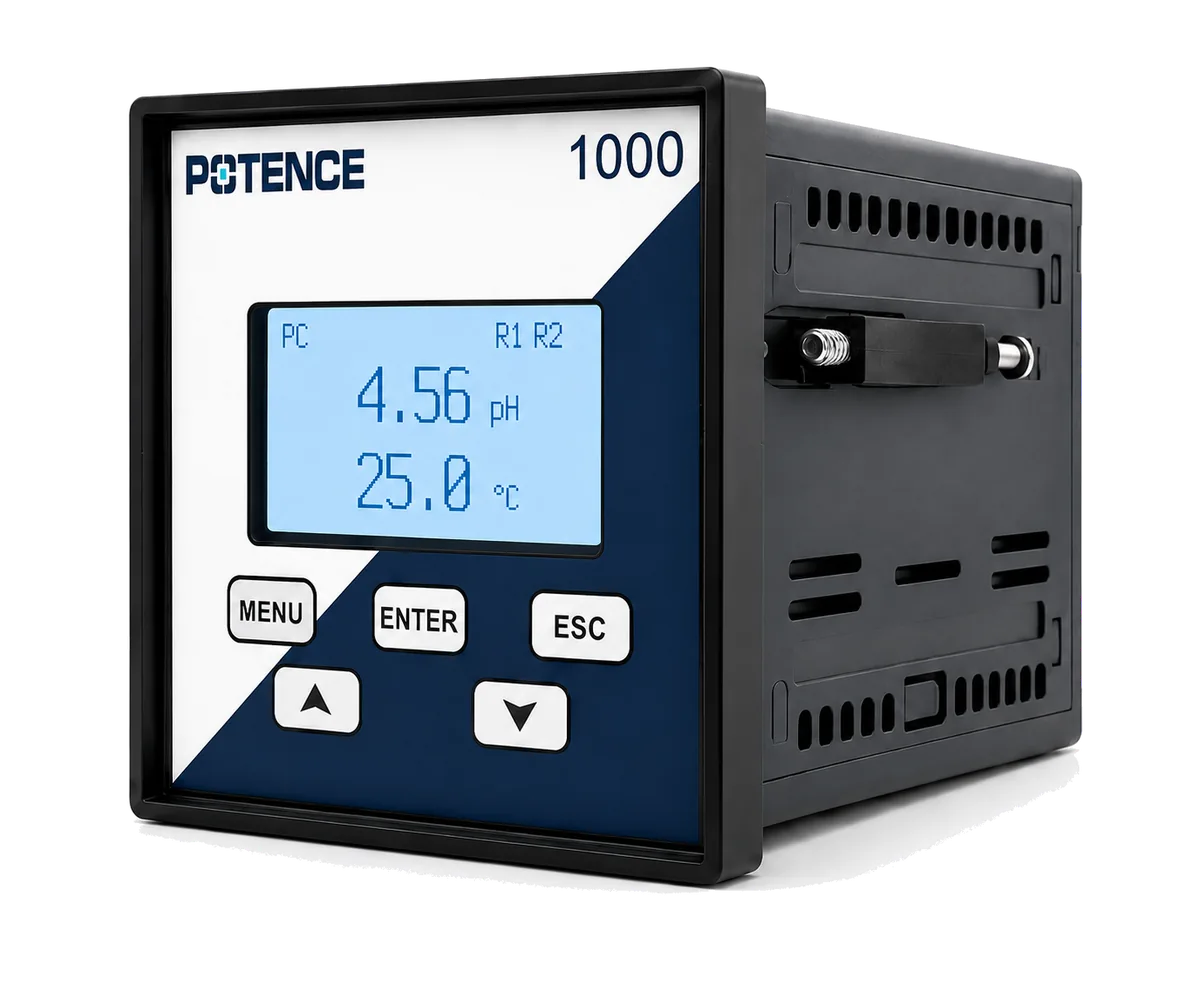

Single-channel controller for pH/ORP, conductivity or TDS.

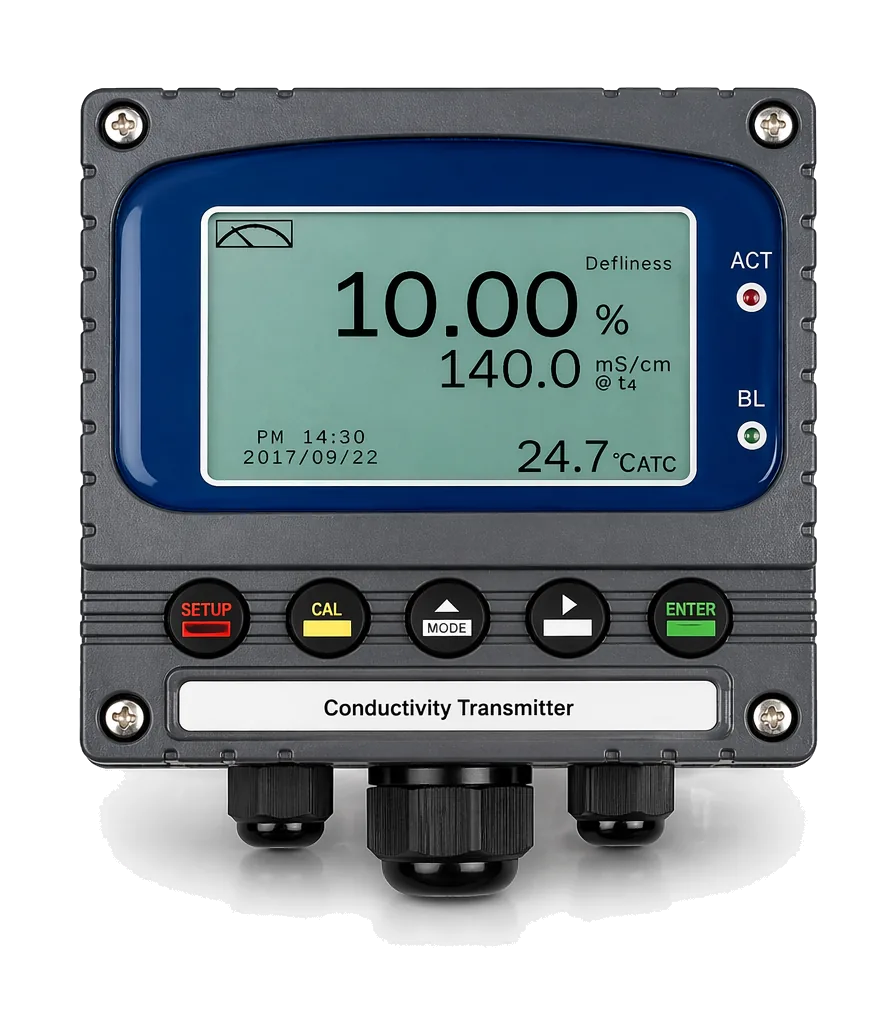

Electrodeless inductive conductivity controller for harsh, high-conductivity media.
