Measuring dissolved hydrogen concentrations in cooling water cycle
The Digox 6.1 H2-S is an instrument to measure the concentration of dissolved hydrogen. The dissolved hydrogen would be detected on fuel cell sensor after separating with a water/gas membrane. The working principle assures reliable, long-living and maintenance-free operation.
| Type | Dissolved hydrogen analyser (stationary) |
|---|---|
| Measuring Range | 0-100 cc/kg or 0-10 mg/L dissolved H2 (selectable units) |
| Accuracy | <17 cc/kg: 5% reading or ±1 cc/kg |
| Resolution | 0.01 cc/kg (selectable) |
| Response Time | t80 < 20 min |
| Calibration | Reference (gas chromatography after phase separation) |
| Sample Flow | 10-250 L/h (stabilized) |
Specifications are indicative and subject to configuration. Contact us for the certified datasheet for your model.
Share your application details and our engineering team will respond — usually within 24 hours — with pricing and the right configuration.
Optical/luminescent dissolved-oxygen sensor, reagent-free.
Dissolved-oxygen indicator/transmitter for optical DO sensors.

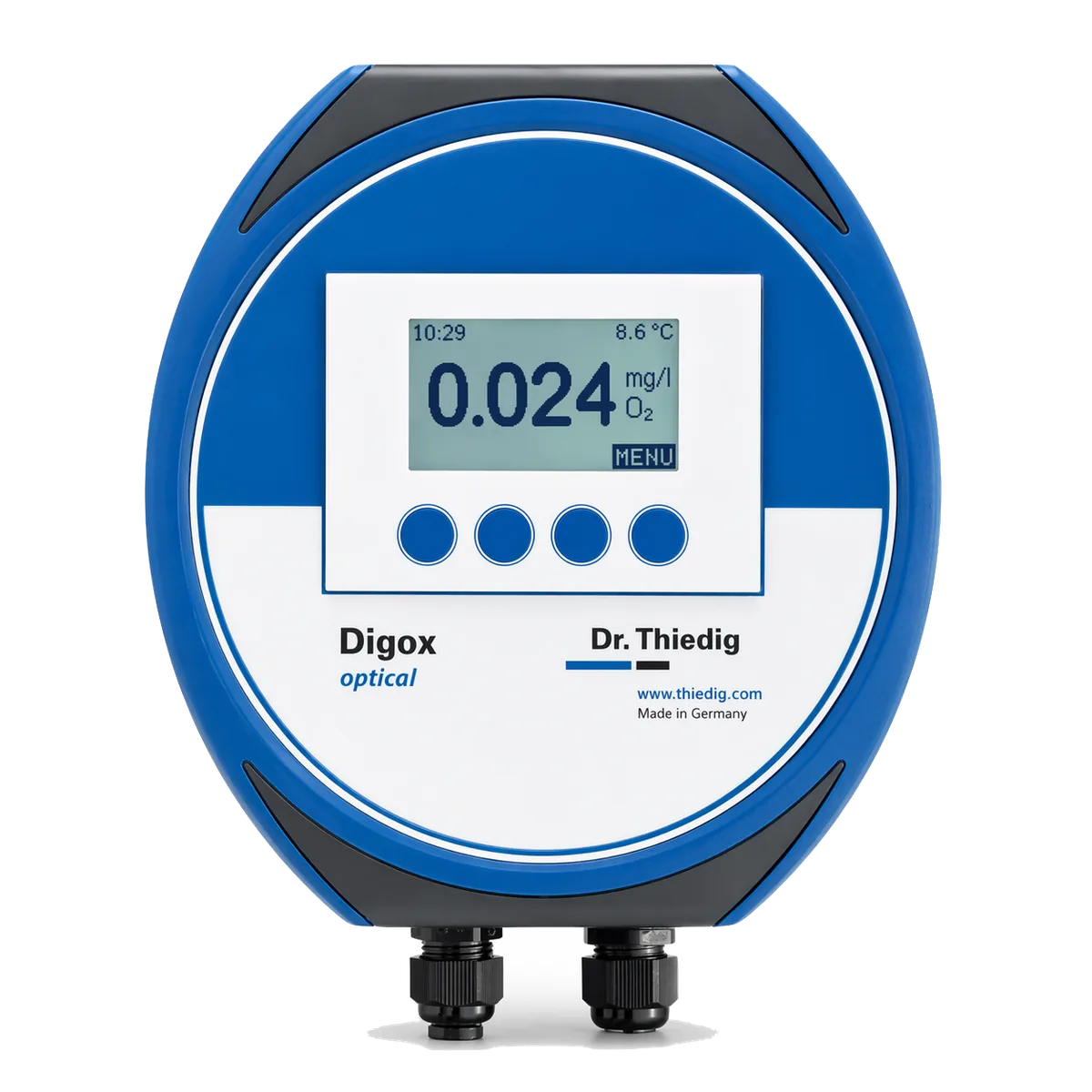

Online trace dissolved-oxygen analyzer using optical/luminescent technology.
