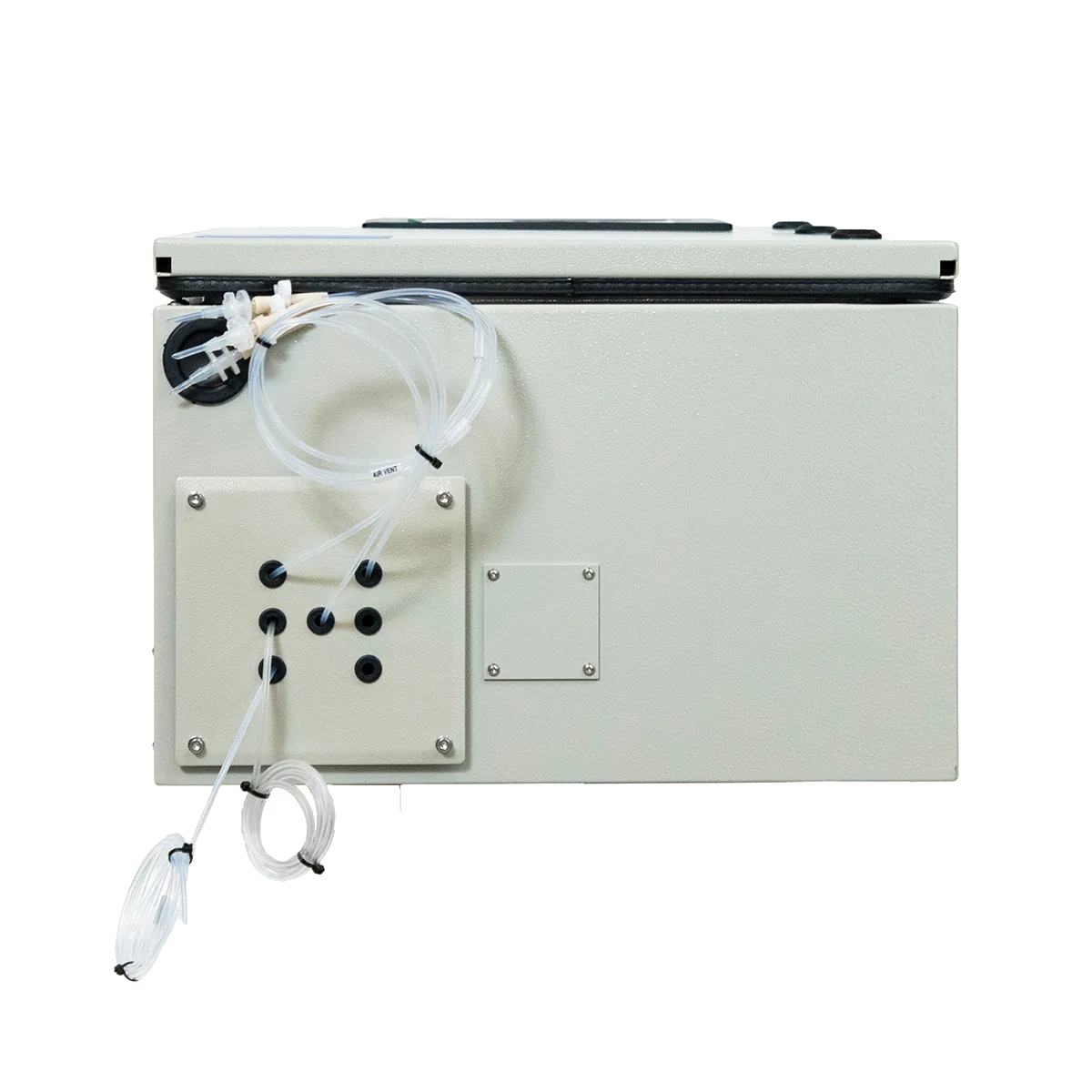

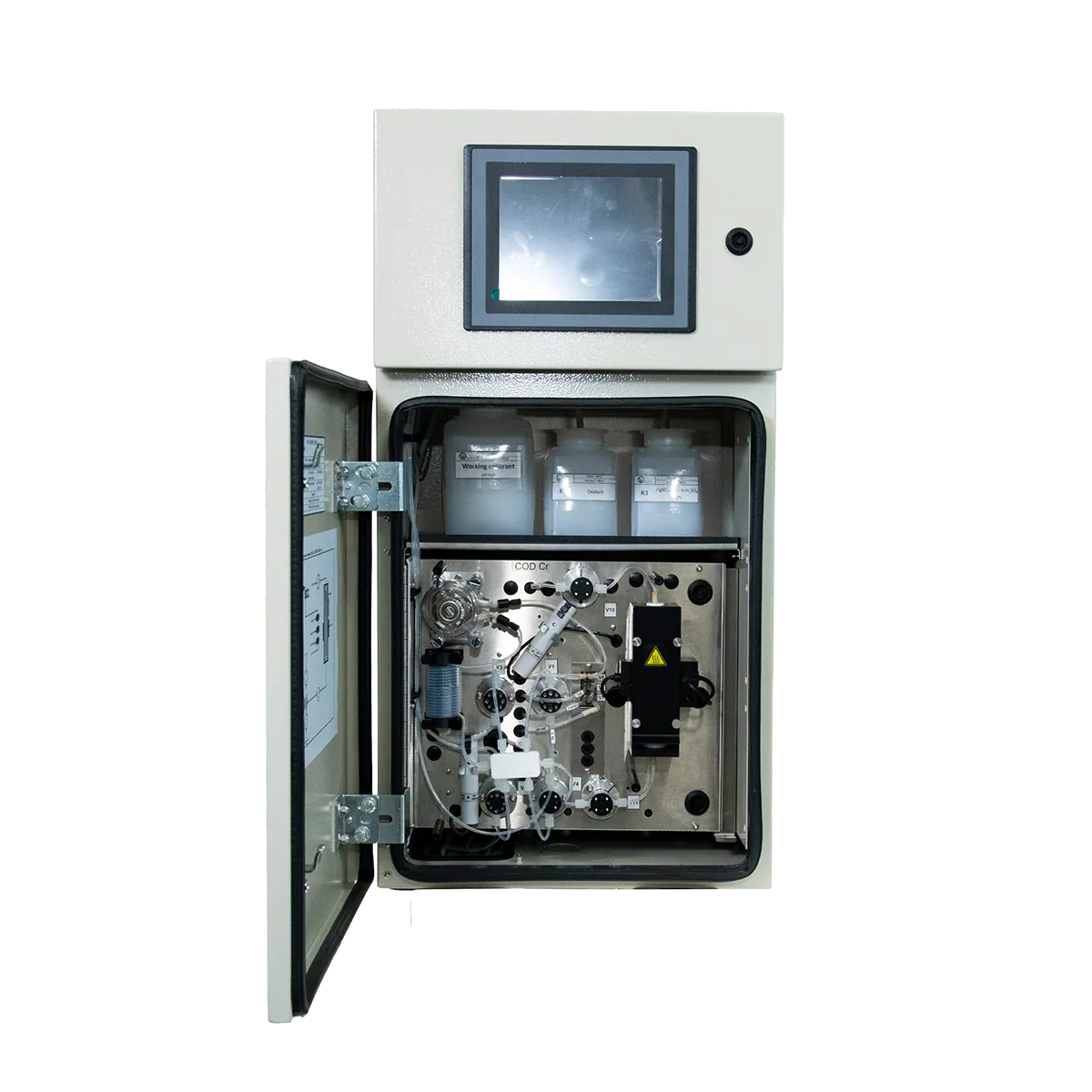

Cyanide Analyzer — Micromac C

Name: Cyanide Analyzer — Micromac C
Brand: SYSTEA
SKU: MICROMAC Cyanide (SYSTEA)

Model / SKU: MICROMAC Cyanide (SYSTEA)

Online colorimetric cyanide analyzer.

Overview

Specifications

Features

Applications

Downloads

The SYSTEA MICROMAC Cyanide is a microprocessor-controlled online colorimetric analyzer for cyanide using the pyridine / barbituric acid method.

Type	Online cyanide analyzer (colorimetric)
Measuring Principle	Colorimetric, pyridine / barbituric acid
Colorimeter	Dual-beam, silicon detector
Measurement Type	Cyclic, programmable interval
Measuring Range	0-0.5 up to 300 ppm CN (others on request)
Detection Limit	~2% of full scale
Output Signal	4-20 mA
Protection	IP55
Hardware	PC104, keyboard + graphics display, RS232 option
Power	12 VDC external PSU
Weight	33 kg (without reagents)

Specifications are indicative and subject to configuration. Contact us for the certified datasheet for your model.

Pyridine / barbituric acid colorimetric method
Dual-beam colorimeter
Cyclic online operation
Range 0-0.5 to 300 ppm CN
Robust IP55 industrial design  Fully automatic operation  Long autonomy
low maintenance, low operating cost  Low reagents consumption
short preparation time
low disposable costs  Easy operation
plug in analyzer, no special training is required  Electronics and hydraulics completely separated  Serial interface for local o remote PC connection (option)

Product Datasheet (PDF)Specifications, dimensions & ordering codes

Installation & User ManualMounting, wiring, calibration & maintenance
