Online colorimetric manganese analyzer (formaldoxime method).
The SYSTEA MICROMAC Manganese is a microprocessor-controlled online colorimetric analyzer for automatic manganese monitoring using the formaldoxime method.
| Type | Online manganese analyzer (colorimetric) |
|---|---|
| Measuring Principle | Colorimetric, formaldoxime method |
| Colorimeter | Dual-beam, silicon detector |
| Measurement Type | Cyclic, programmable interval |
| MEASURING TIME: 13-15 minutes depending on the range Measuring Range | 0-0.5/1.0/2.0/5.0/10/20/50 ppm Mn (others on request) |
| Detection Limit | ~2% of full scale |
| Output Signal | 4-20 mA |
| Protection | IP55 |
| Hardware | PC104, keyboard + graphics display, RS232 option |
| Power | 12 VDC external PSU |
| Weight | 33 kg (without reagents) |
Specifications are indicative and subject to configuration. Contact us for the certified datasheet for your model.
Share your application details and our engineering team will respond — usually within 24 hours — with pricing and the right configuration.

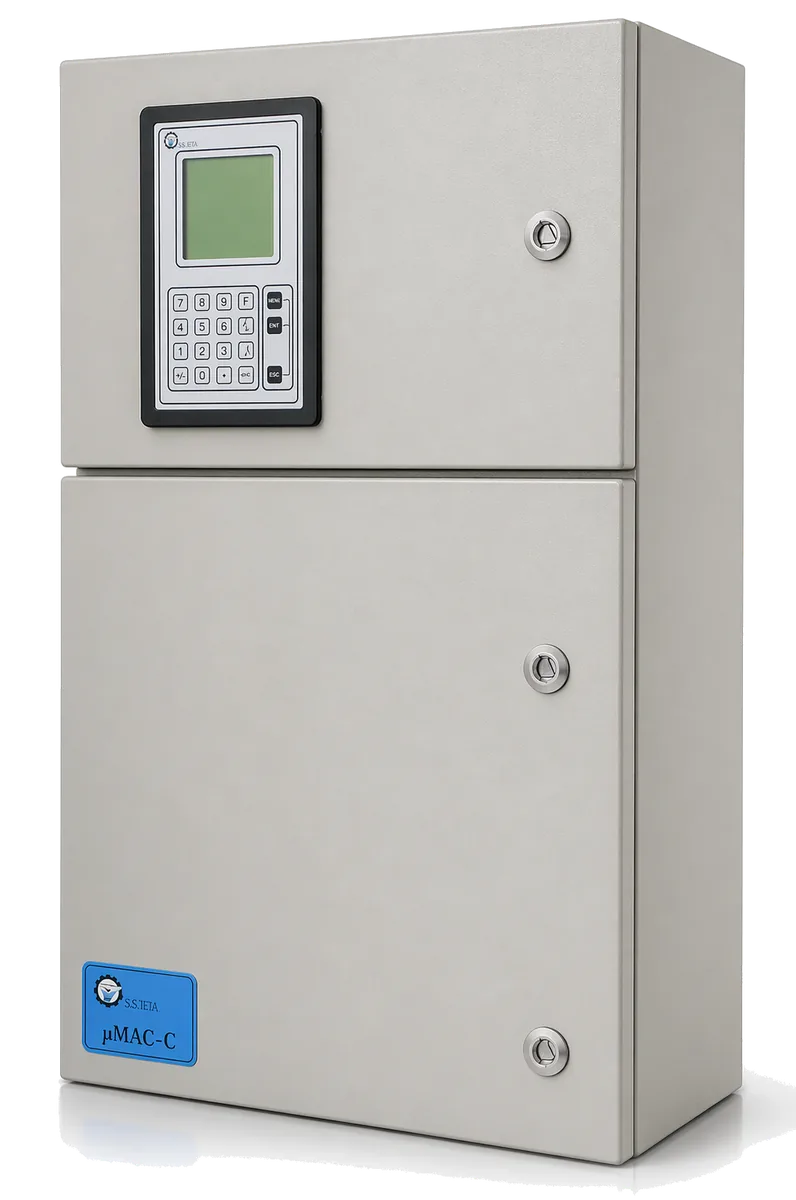

Online colorimetric copper analyzer (bathocuproine method).
