Water Analyzers · COD / BOD / TSS

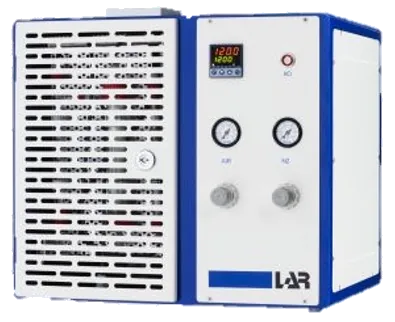

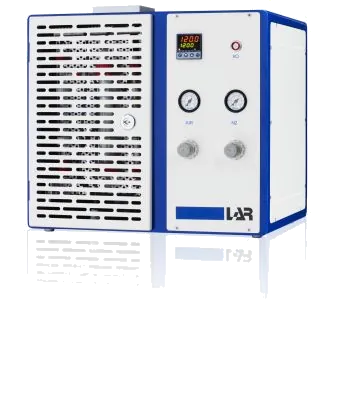

COD Analyzer — QUICK COD Lab

Model / SKU: QuickCOD lab (LAR)

Chemical-free laboratory COD analyzer.

QUICK COD Lab
Thermal Combustion
0–3,000 mg/L (standard), up to 10,000 mg/L

Request a Quote Download Datasheet

Overview

Specifications

Features

Applications

Downloads

Product Overview

The LAR QuickCOD lab determines chemical oxygen demand in the laboratory chemical-free, using proven thermal oxidation at 1,200°C with no catalyst or reagents, delivering a real COD result in about three minutes.

Technical Specifications

Type	Laboratory COD analyser (thermal oxidation at 1,200°C, catalyst-free)
Measuring Ranges	up to 10,000 mg/L COD (e.g. 0-3,000
Response Time	3 minutes
Sample Injection	Manual eSyringe or AutoSampler (option)
Housing	Steel, IP54, powder-coated
Dimensions	500 x 450 x 450 mm (WxHxD)
Weight	37 kg
Power	230 VAC, 50/60 Hz
Fuses	Internal 2/6 A, external 16 A
Software	LAR QuickCOD lab (Windows 7+)
Data Interface	USB 2.0, LAN (optional)
Data Output	CSV export
Gas Supply	Nitrogen carrier gas + clean oil-free air

Specifications are indicative and subject to configuration. Contact us for the certified datasheet for your model.

Key Features

Reagent-free, chemical-free COD determination
Result in ~3 minutes
Thermal oxidation at 1,200°C, no catalyst
Excellent chloride acceptance
Manual or automatic sample injection
Low operating and maintenance costs

Typical Applications

Laboratory COD analysis

Wastewater / effluent testing
